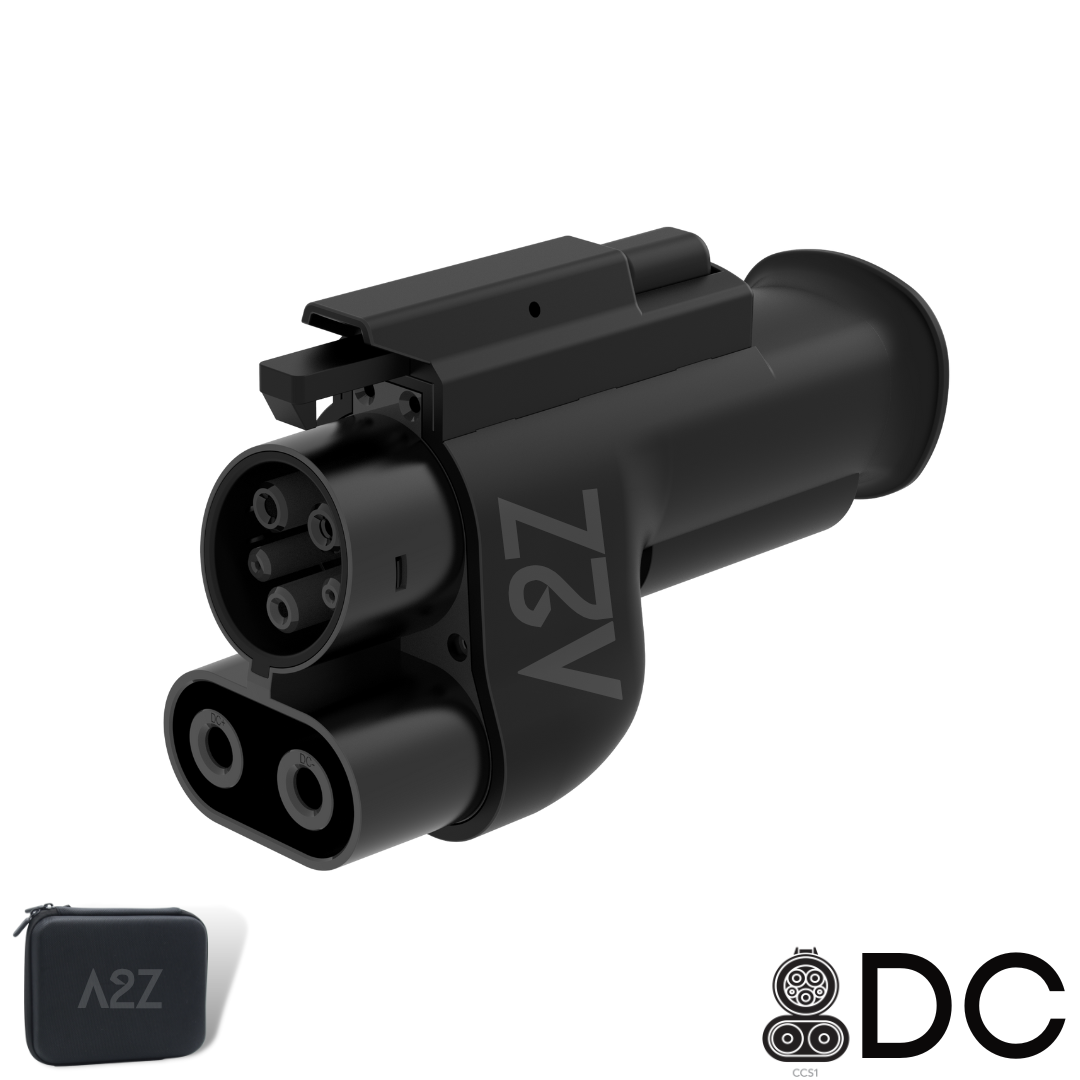

A2Z EV NACS Charger to CCS1 Vehicle | DC Fast Charging Adapter | 1000V | The Typhoon Pro

Key Features :

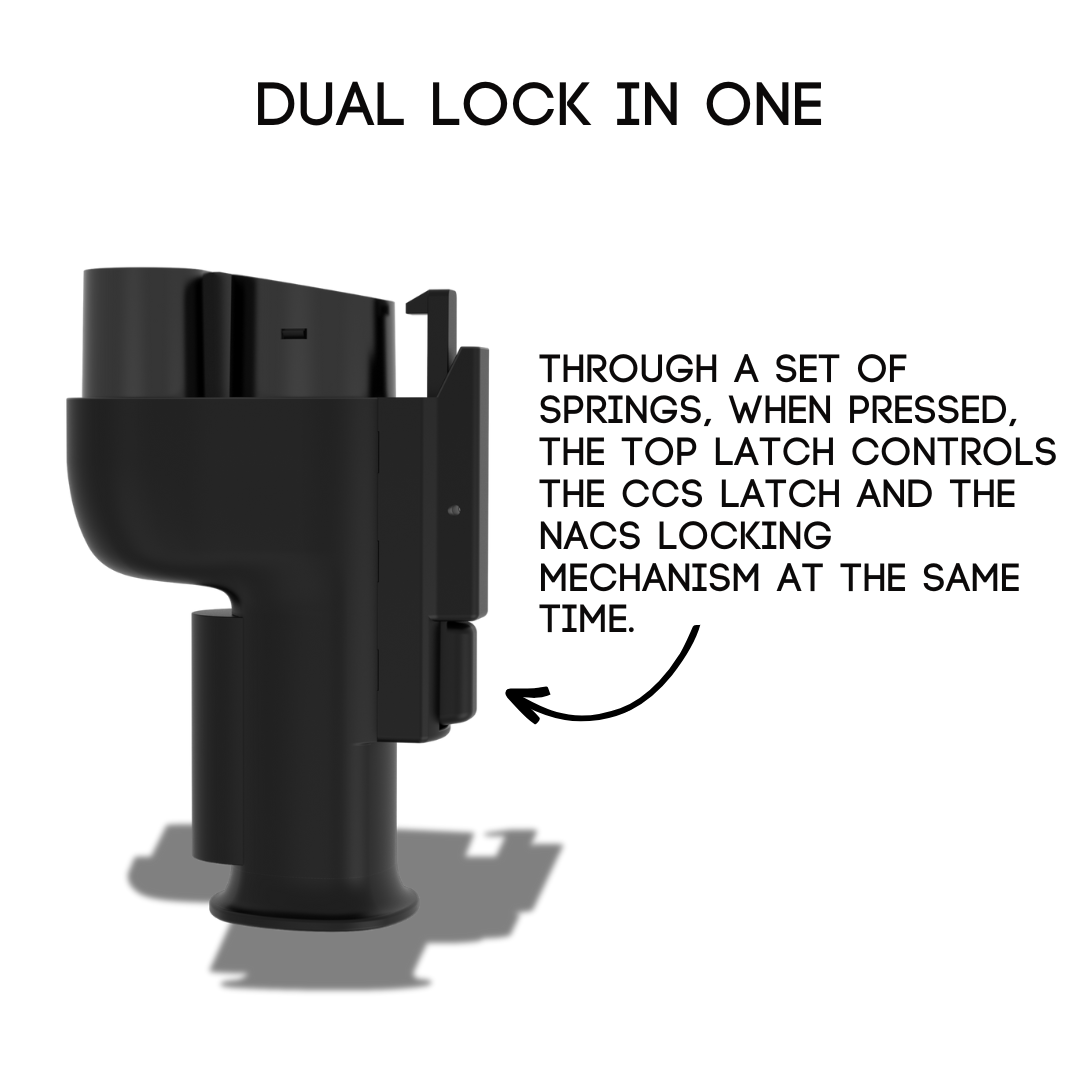

• Safety and Security: The adapter features a single locking mechanism : The top latch ensures proper interlock between the adapter and the vehicle's charge port. The top locking mechanism (CCS1 latch) controls through a set of springs the NACS side locking pin. If the adapter is locked by the charge port's locking mechanism, the NACS connector can't be removed from the adapter.
• Protection : IP54 (mating) & IP67 (enclosing).
• Wide reach : connects to NACS DC fast chargers across North America.

Requirements :

• For CCS1 port equipped vehicles
• Charger : NACS DC fast chargers, e.g. Tesla Superchargers (V3/V4) and third-party NACS stations. Before your first session, check your vehicle's NACS DC fast-charging
  access in your car's app.

Dedicated to precision, our design prioritizes the seamless integration with your vehicle, ensuring utmost safety and compatibility.

For added safety, the A2Z Typhoon Pro adapter incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected.

Specifications :

• Rated Current : 350A continuous (CSA certification pending) // Max : 500A* // Over boost : 600A.
• Rated Voltage : 1000VDC.

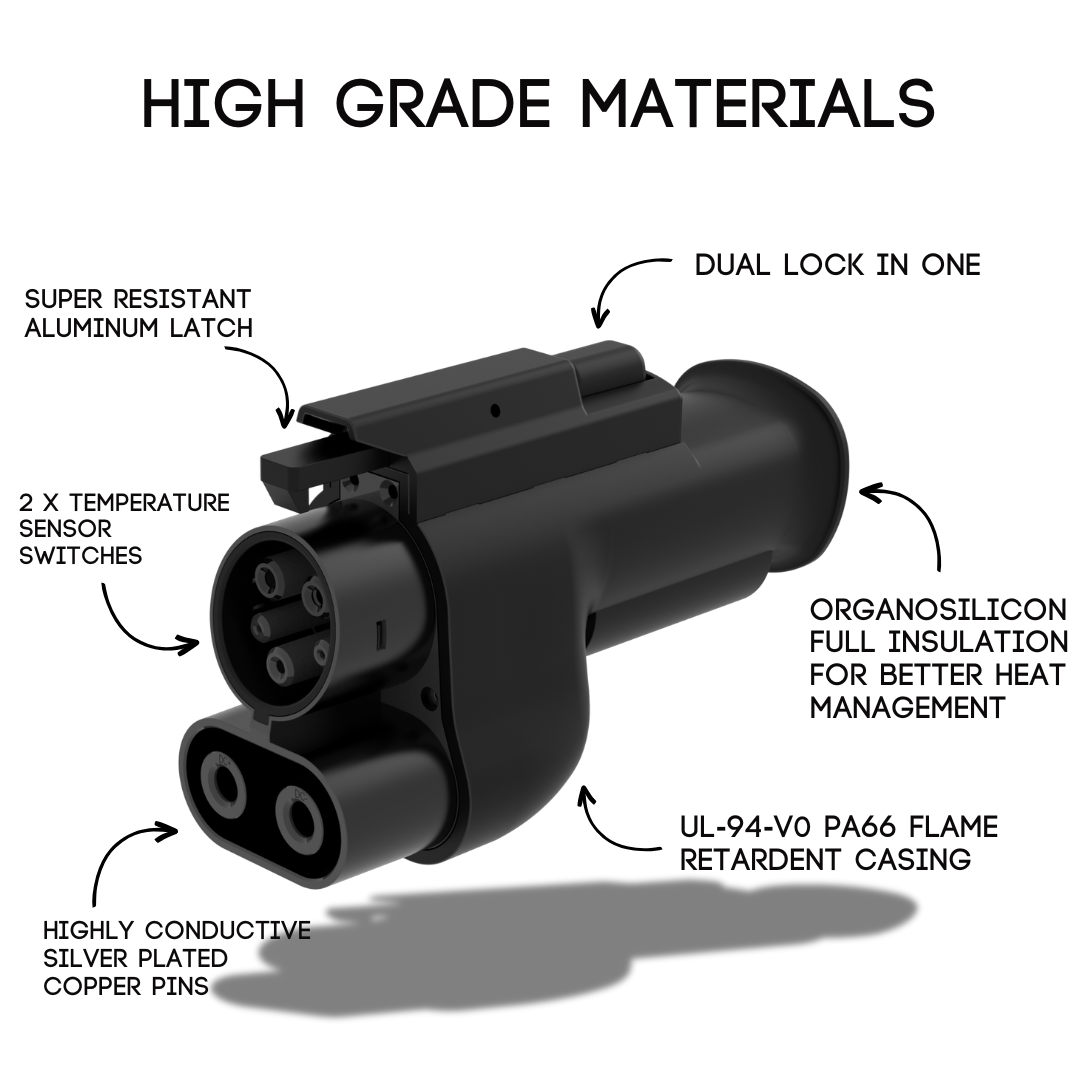

• Conductor Material : Silver plated copper.
• Shell Material : UL-94-V0 PA66.
• Operating Temperature : -30°C to 50°C.
• Thermal monitoring : Dual over-temperature sensor switches

• Sealing gasket : Silicon rubber.
• Locking : Dual locking mechanism in one.
• Security : Locks into the vehicle while charging (if the vehicle incorporates a charge port locking pin).
• Enclosure Type : Type 3R


*Maximum current. Engineering-tested at 600 A. CSA certification to UL 2252 at 350 A continuous is in progress; units currently in stock are not yet CSA certified. Actual charging current is set by your vehicle and the charger.

For more detailed specs, contact us.

Product certifications :

• Built to UL 2252; certification underway.
• FCC certification (DL-20230705008C).

Instruction manual

Warranty: Enjoy a 12-month warranty against manufacturing defects. Note: Warranty doesn't cover misuse, mishandling, negligence, accidents, or modifications.

Our warranty only covers manufacturing defects.
Consult the warranty section for more informations.

Our Products Are Designed and Tested in North America.
