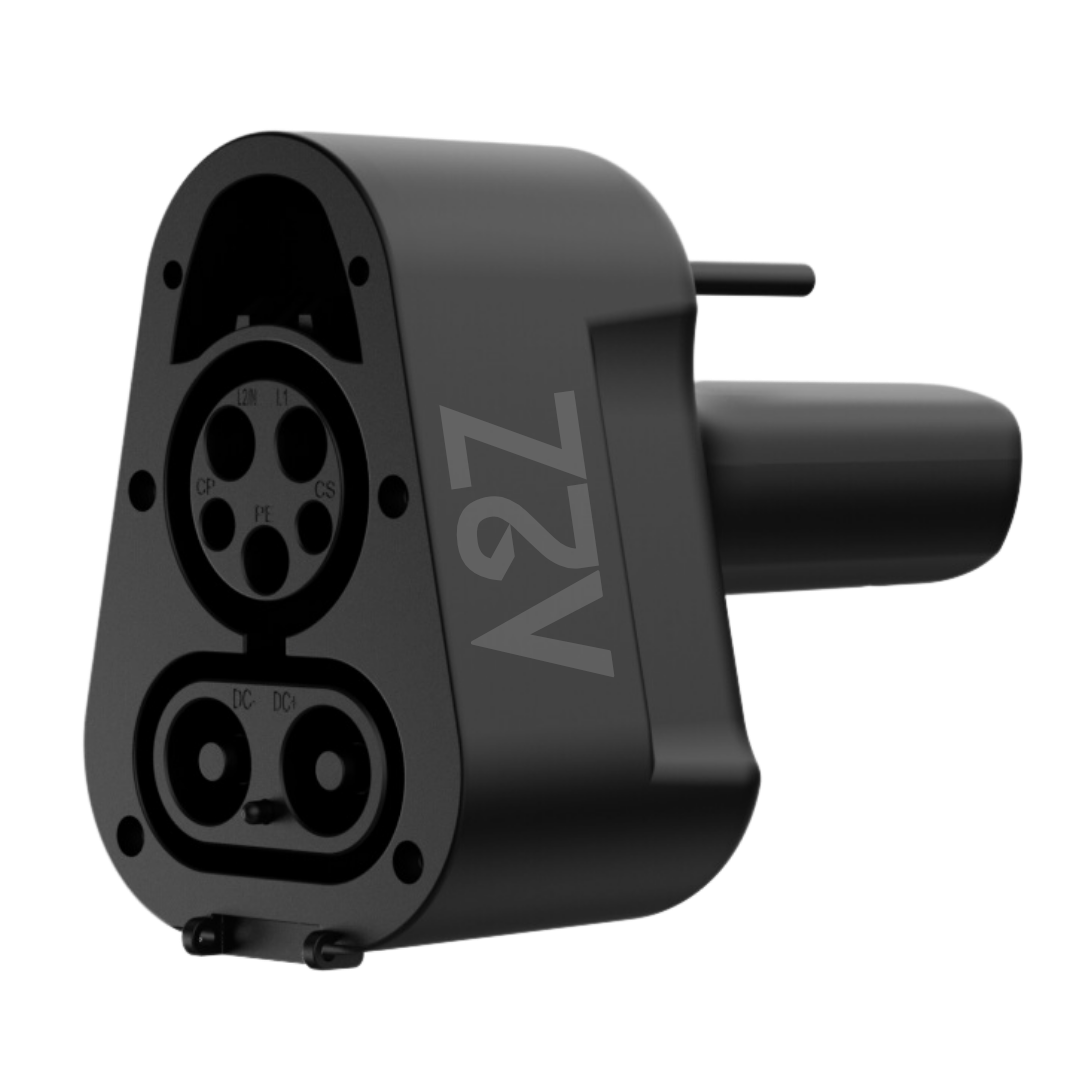

CCS1 Charger to NACS Vehicle | DC | For Tesla Model S/3/X/Y & NACS EVs | Certified to UL 2252 - CAN/CSA C22.2 | The Thunderstorm Adapter

If your vehicle has the below NACS charge-port (inlet), it works. Our adapter is based on the J3400/1 (NACS) standard's clearance, it fits regardless of the car brand or model :

Key Features :

• Power : DC charging
• Safety and Security: Our adapter locks in while charging, ensuring no unplanned disconnections or thefts. Includes an interlock safety pin preventing accidental removal of charging connector while charging. Unplug it with authorization from your car, phone or charging station's control panel.
• Protection : from dust and water. Includes a hard case.
• Charge at thousands of CCS1 DC fast chargers across North America, e.g. Electrify America, EVgo, FLO and Petro-Canada

Requirements :

• For the North American market.
• Any CCS1 compatible DC fast charging station.
• NACS vehicles
• Model S, 3, X & Y
• For Tesla : CCS Adapter Support : Enabled*



About the Product: Take your road trips to the next level with A2Z EV's CCS combo 1 adapter, suitable for North American and South Korean NACS vehicles. Compatible with Model S, 3, X & Y and any CCS1 DC fast charging station (see 'additional vehicle information' in your car settings).

Built for Safety: For added safety, the A2Z Thunderstorm adapter incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected.

Easy to Use: Plug the A2Z Thunderstorm adapter into the charging station, then into your vehicle. To unplug, simply authorize from your vehicle or phone.

Specifications :

• Rated Current : 300A continuous (CSA certified) // Max : 500A* // Over boost : 600A, in-house tested for 90+ minutes (26 °C ambient) with automatic thermal protection.
• Rated Voltage: 1000V
• Conductor Material : silver plated copper
• Shell Material : UL94V-0
• Operating Temperature : -30°C to 45°C
• Thermal monitoring : Dual over-temperature sensor switches
• Locking : locking pin retains the CCS1 latch in place
• Enclosure Type : Type 3R

*Maximum current. Certified continuous rating: 300 A (CSA, UL 2252 / CSA C22.2 No. 282). In our in-house engineering test at 26 °C ambient, the adapter carried 600 A for over 90 minutes on standard non-cooled cables before its thermal protection activated. Actual charging current is set by your vehicle and the charger.

For more detailed specs, contact us.

Product certifications :

• UL2252 - CAN/CSA-C22.2 Certified - 305840 (MC) - 80265272

• CE certified - BYS230223216LK
• FCC certified (EMI) - BYS220906041FK

Inside Your Package :

• A2Z Thunderstorm CCS Combo 1 Adapter.
• Protective Hard Case.

Warranty: Enjoy a 24-month warranty against manufacturing defects.

Note: Warranty doesn't cover misuse, mishandling, negligence, accidents, or modifications.

Our warranty only covers manufacturing defects.
Consult the warranty section for more information.

Our Products Are Designed and Tested in North America.
