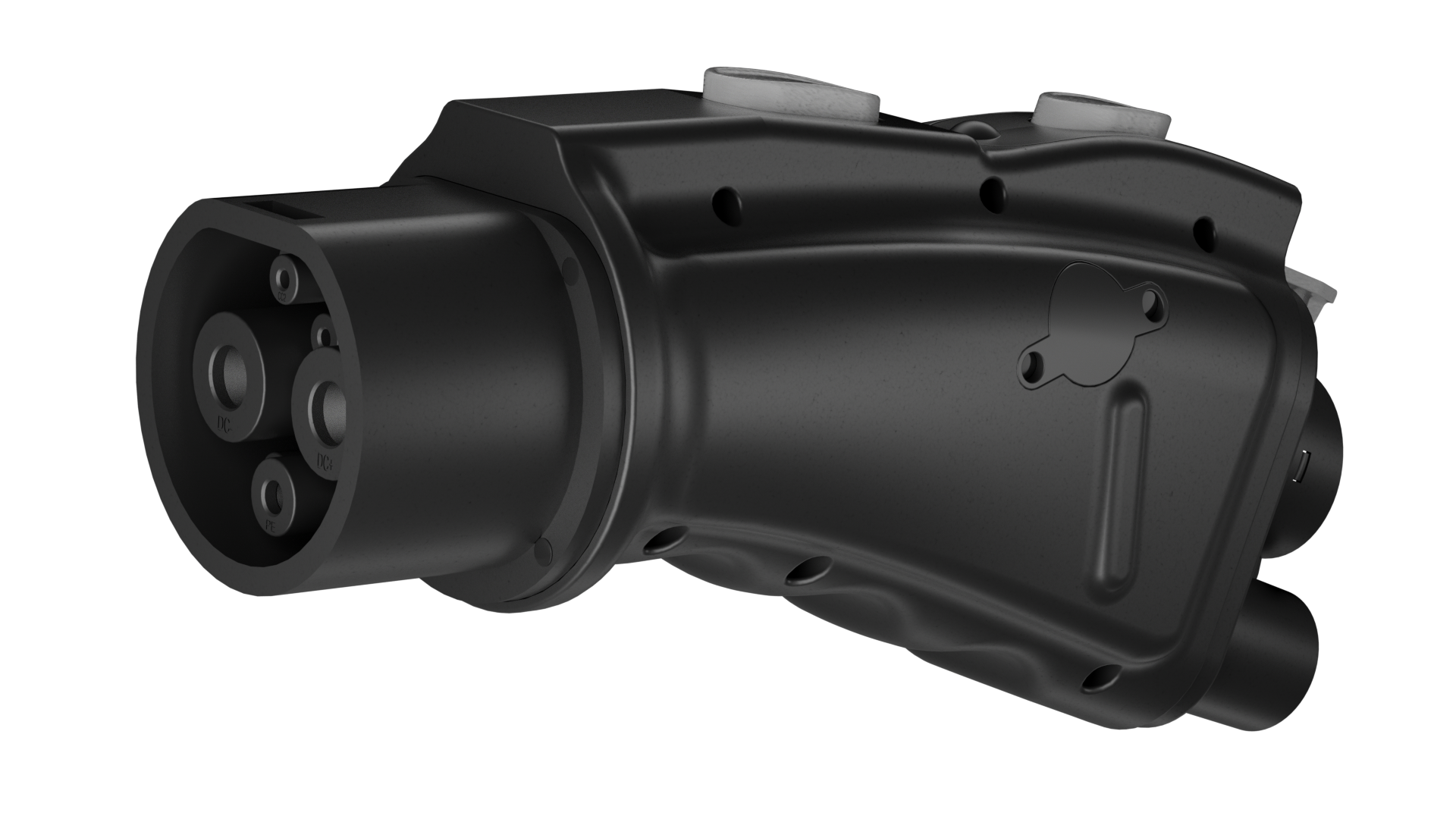

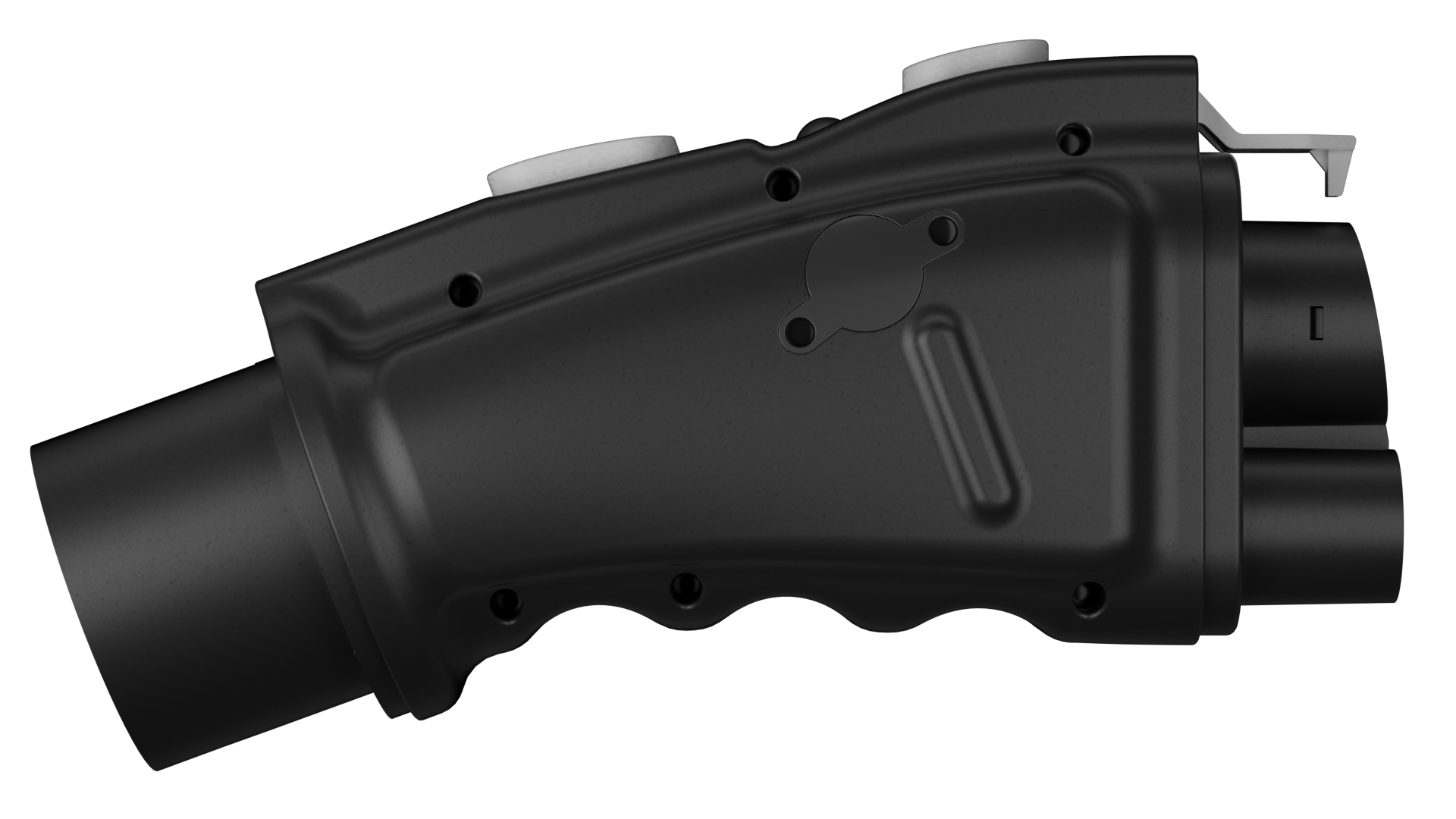

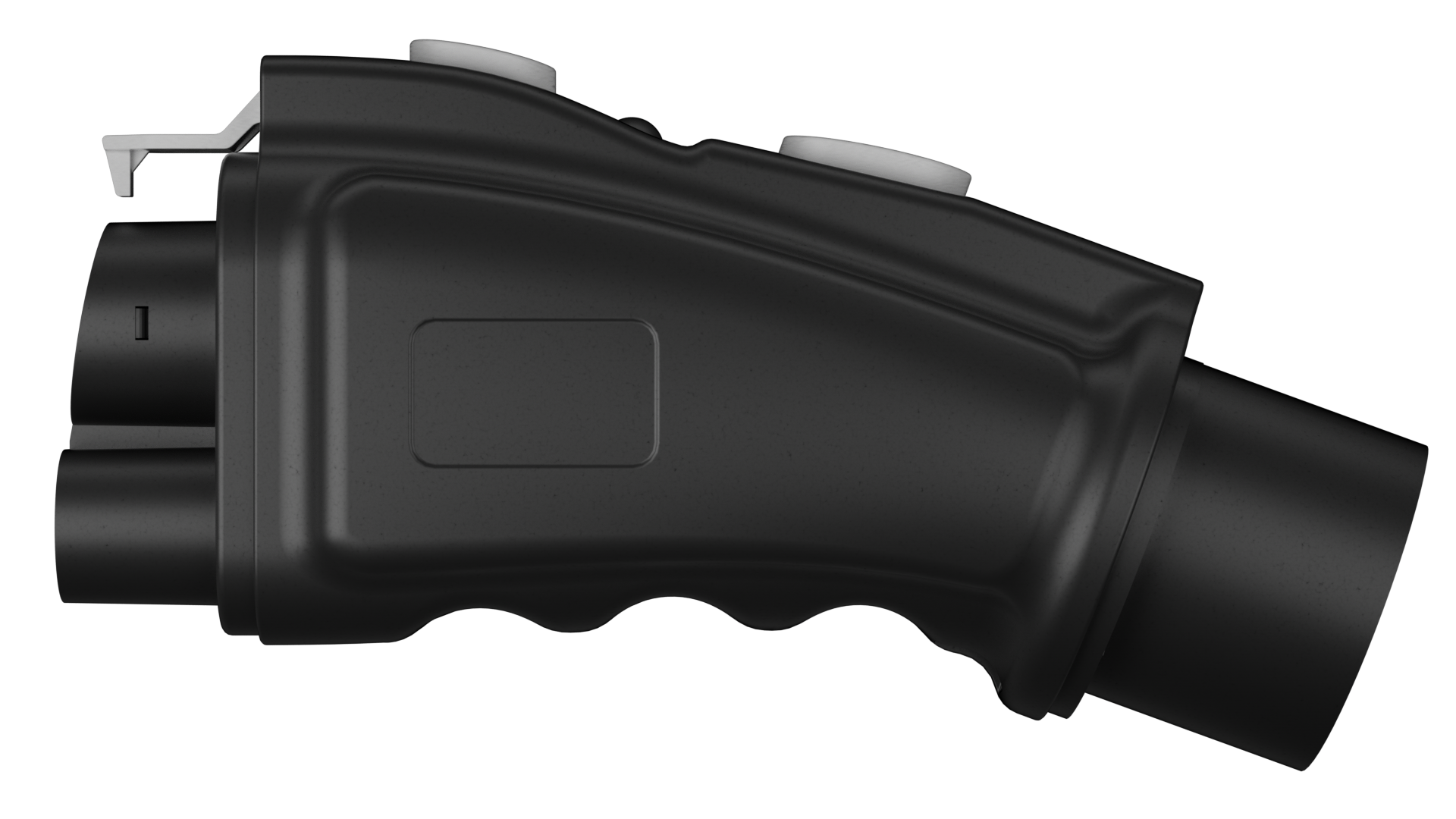

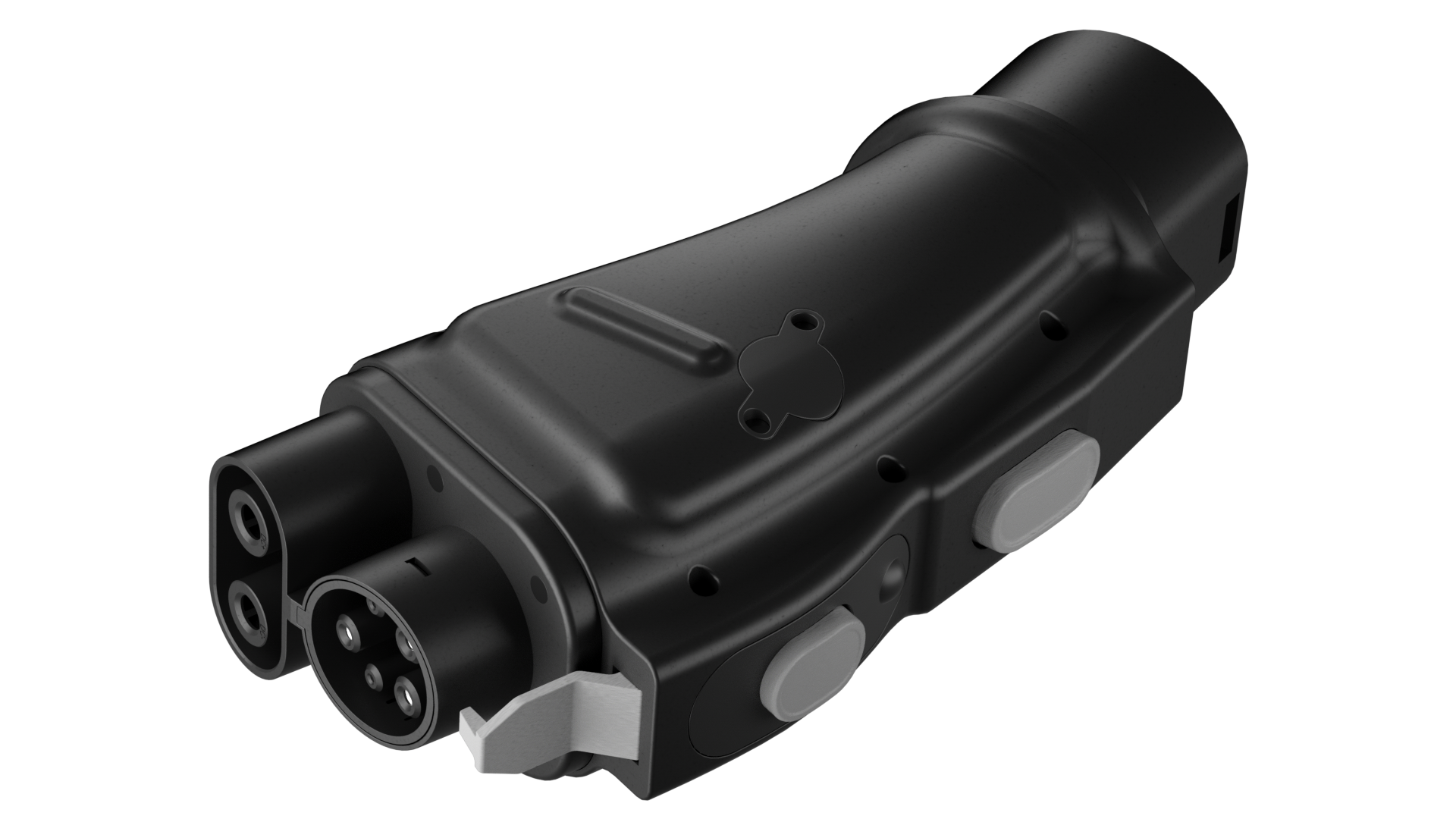

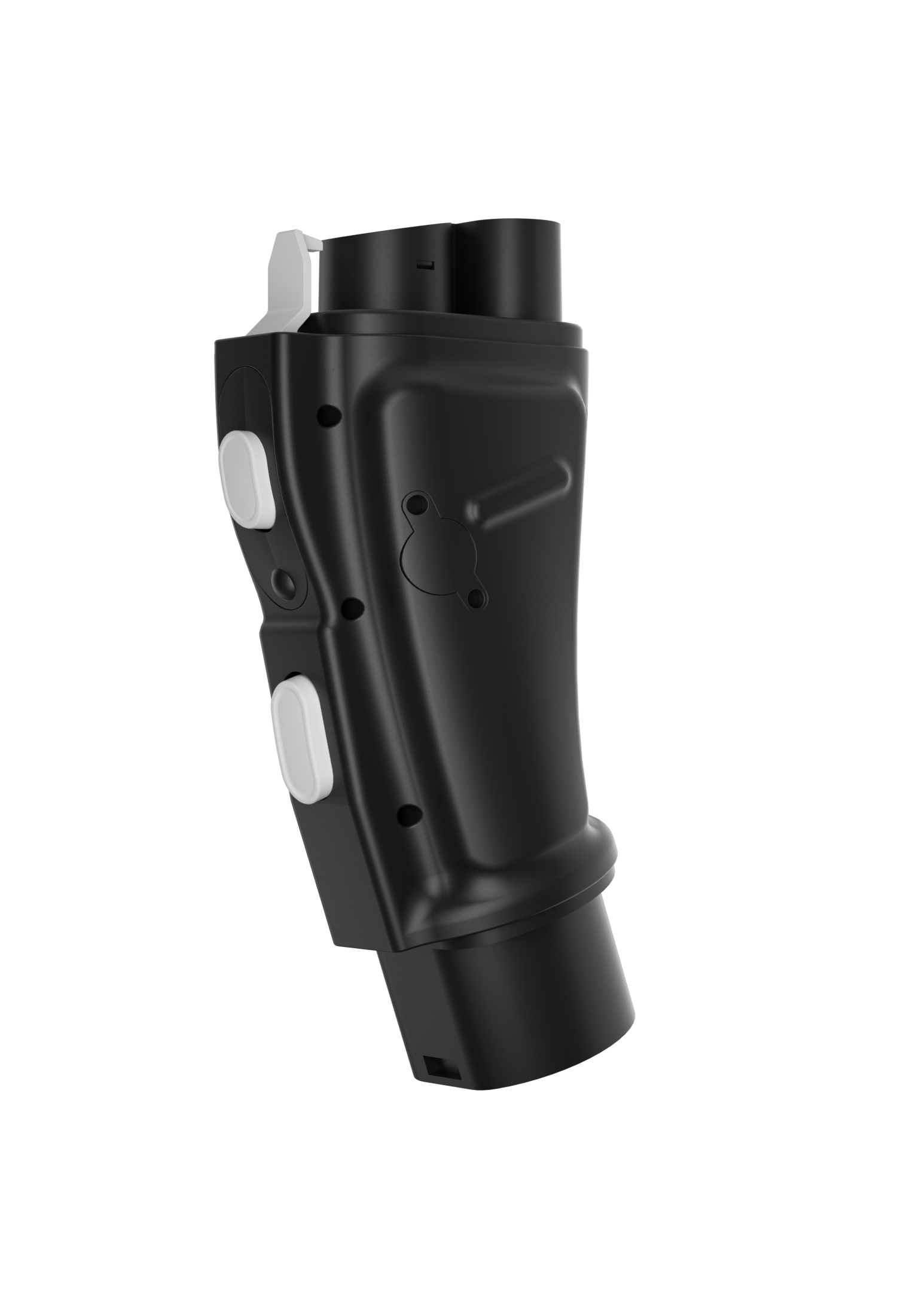

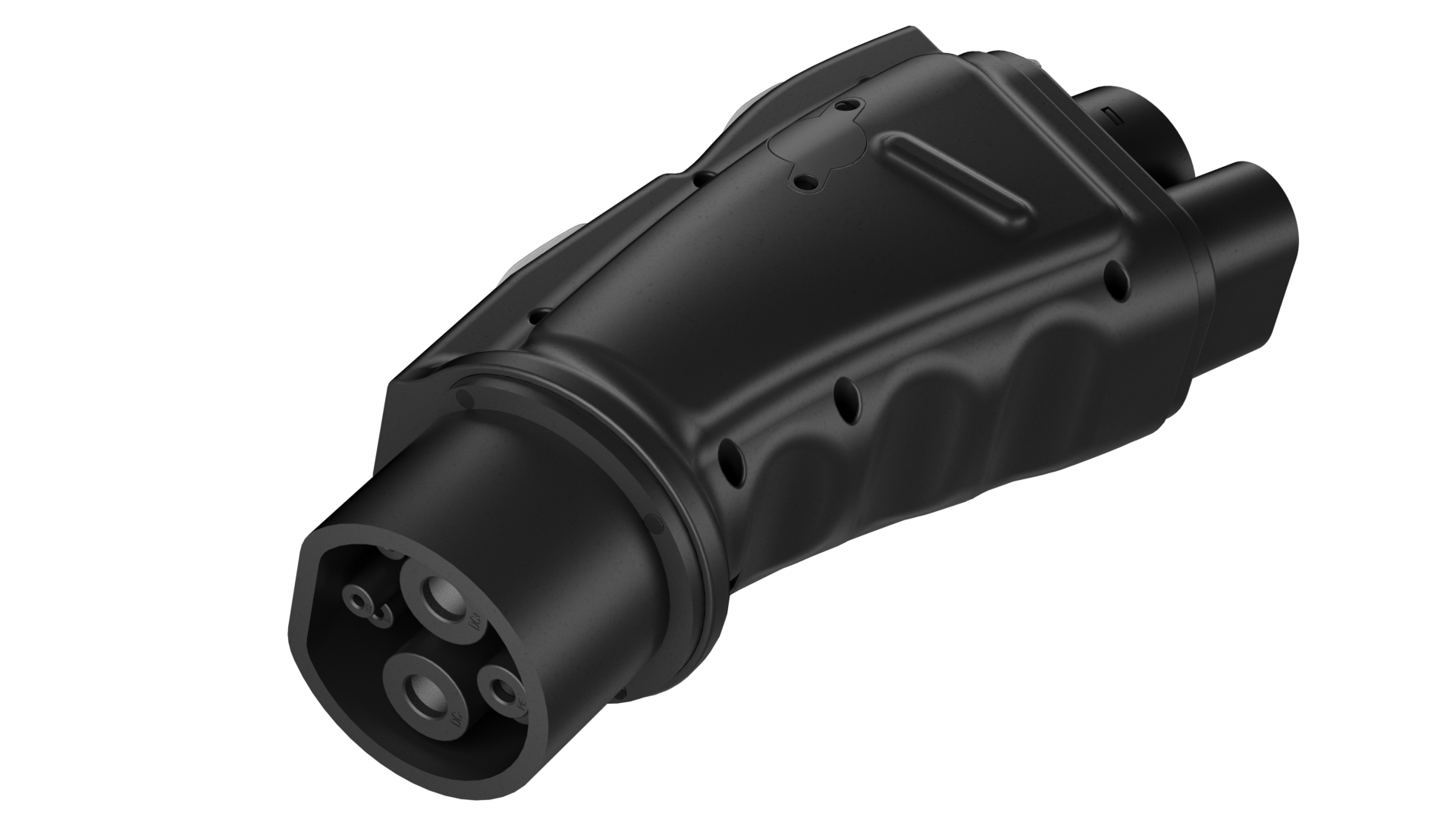

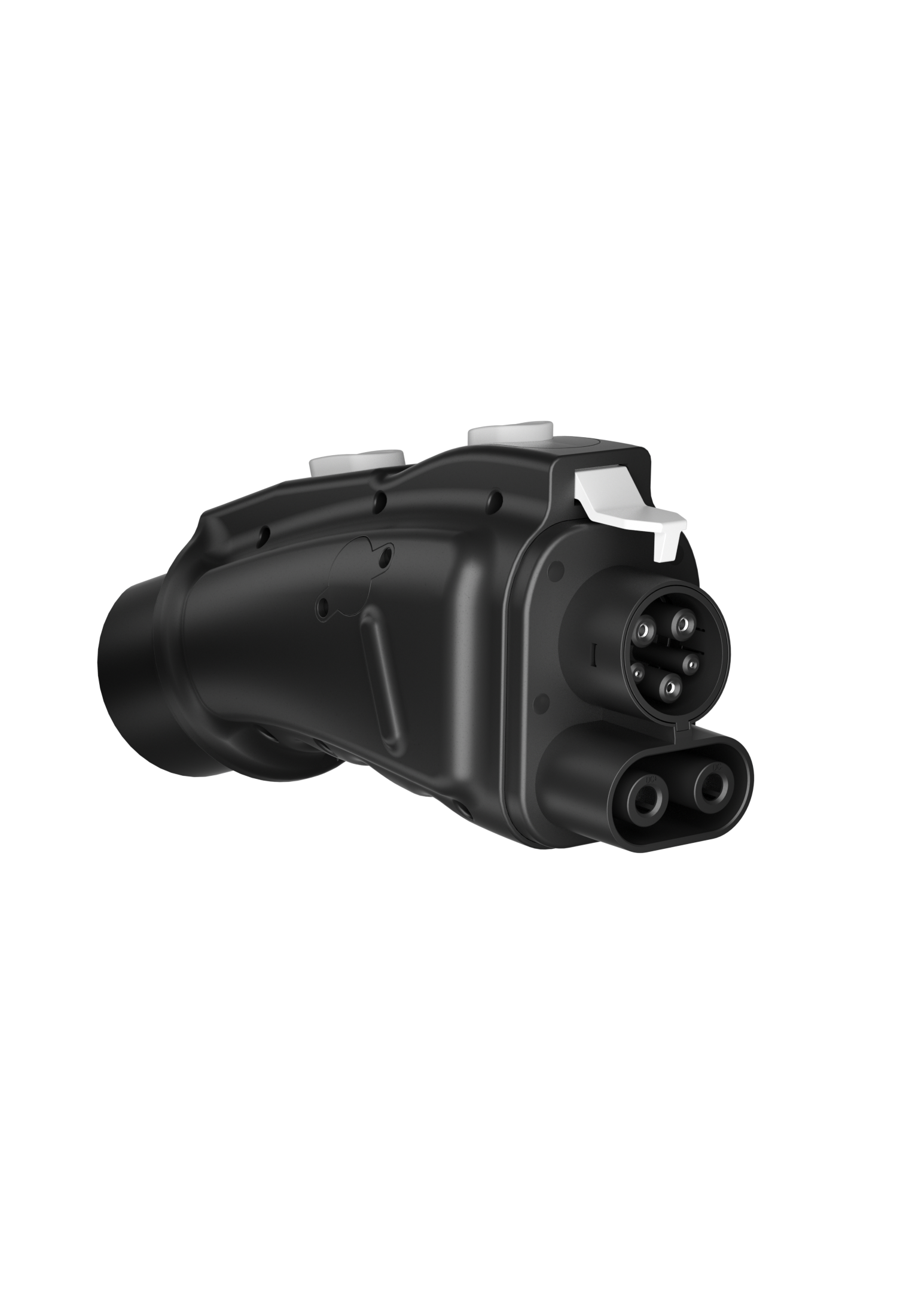

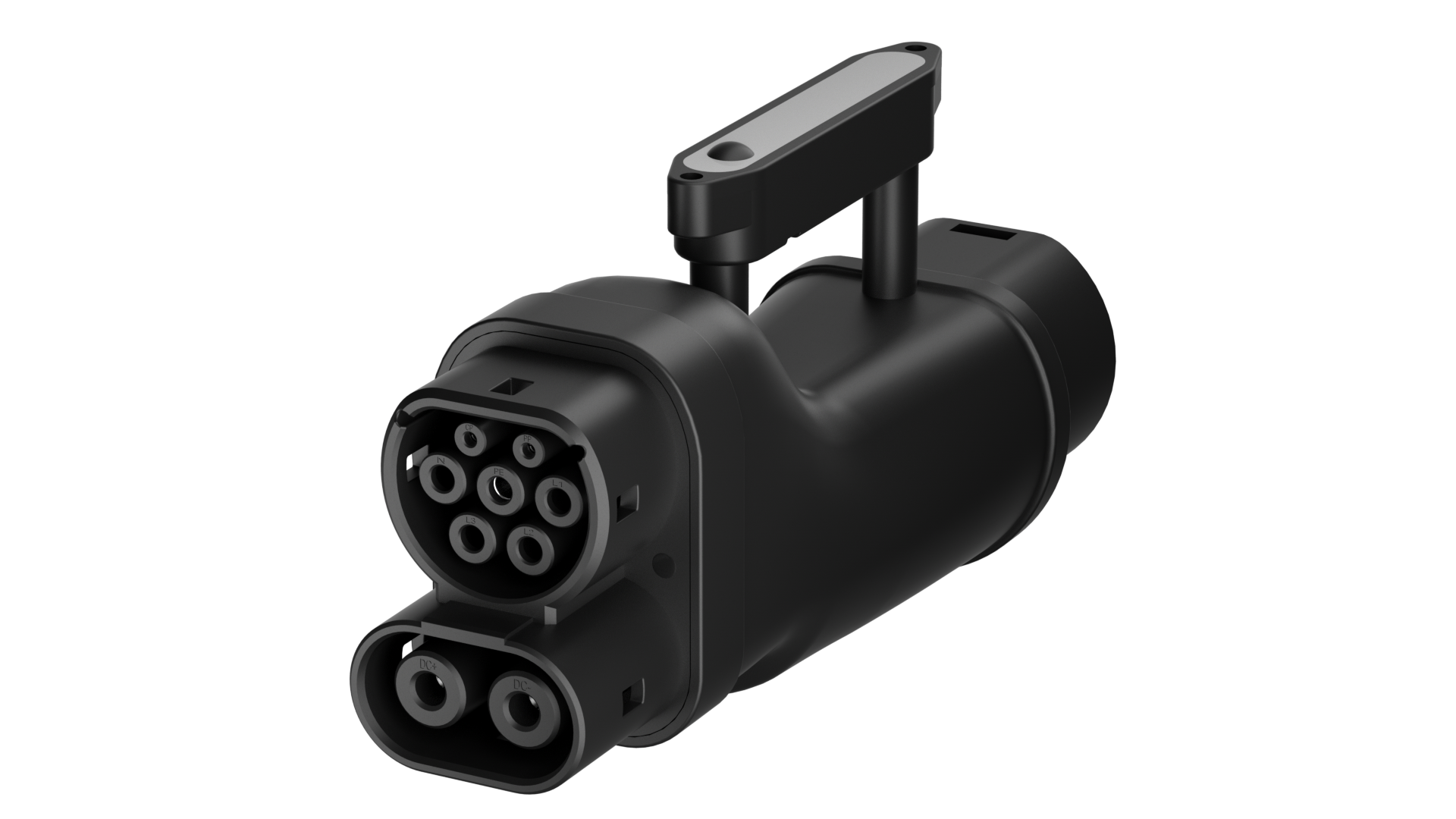

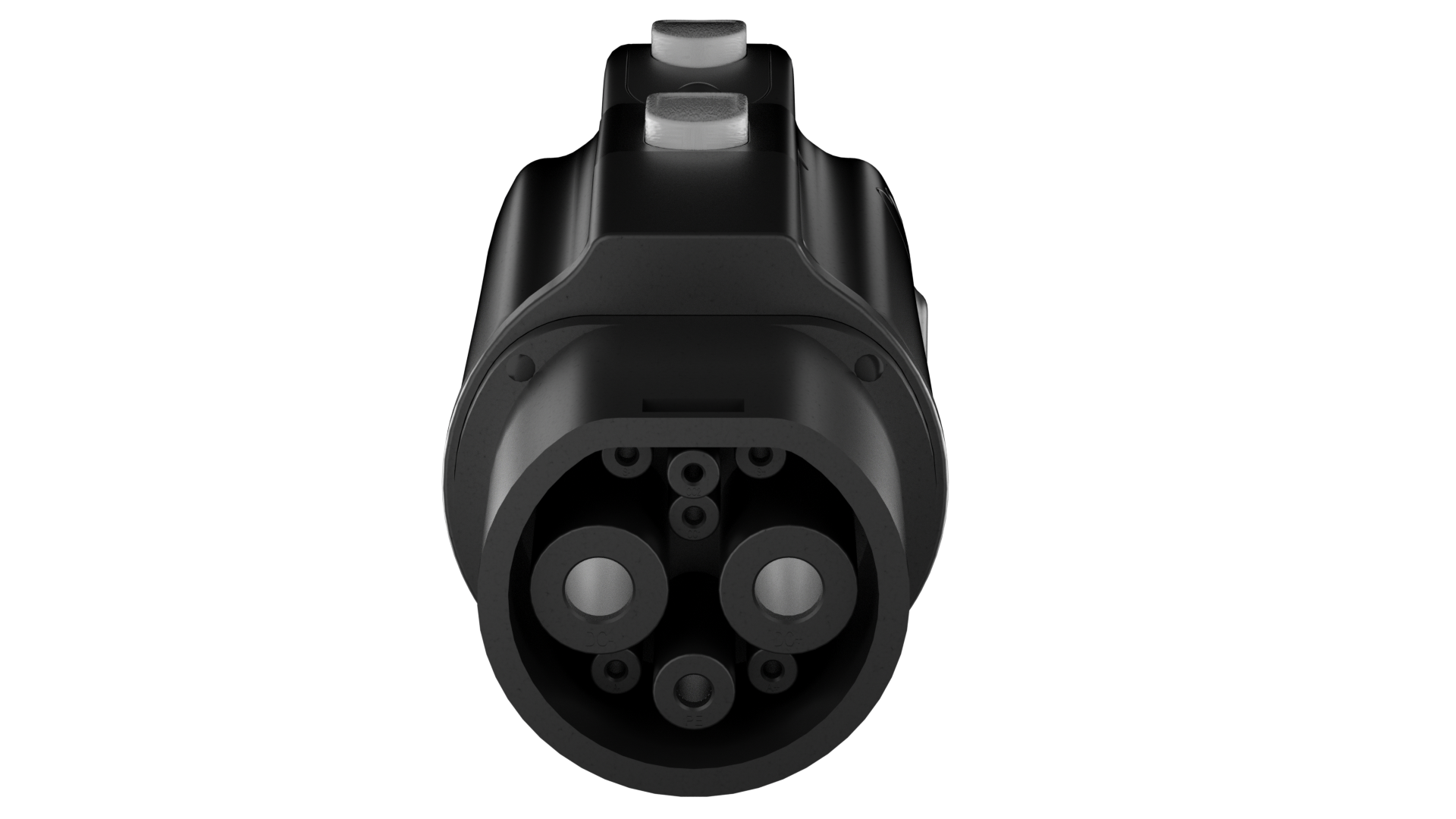

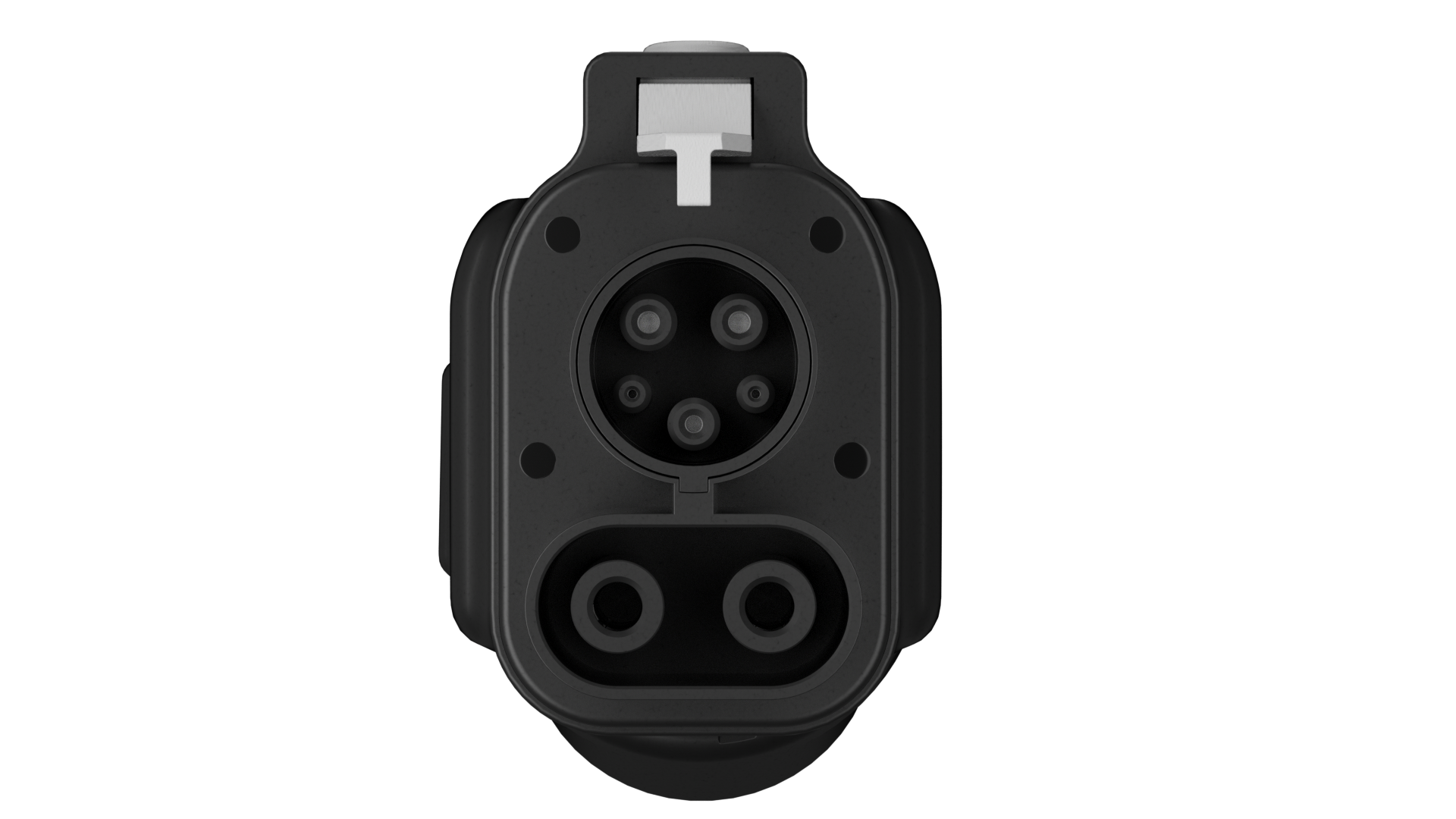

GB/T Charger to CCS Vehicle | DC | CCS1/CCS2
Tested and meets the highest safety standards
Shipping's on us for all orders in Canada & USA
Real customer service, we don't use bots or AI
Couldn't load pickup availability
Description
Requirements :
- This adapter supports DC
- Compatible with all GB/T chargers and CCS vehicles
- For Mexican, South-American, African & South-Asian Market
Standard-Compliant :
The adapter complies with the European Electromagnetic Interference standard (LVD)2006/95/EC and (EMC)2004/108/EC
The communication protocol is DIN 70121 / ISO 15118 and 2015 GB/T 27930.
Specifications :
- Power : Charging speeds up to 200ADC
- Rated Voltage : 100~1000V.
- Conductor Material : silver plated copper
- Shell Material : Polyoxymethylene (Insulator inflammability UL94 VO)
- Operating Temperature : -30°C to 50°C
- Storage Temperature : -40°C to 85°C
- Security : Dual Temp. kill switch. Charging stops when adapter reaches 90ºC)
- Sealing gasket : silicon rubber.
- Security : locks into the vehicle while charging
- Degree of protection : IP54
Product certifications :
- CE certified - HUAX230714004KC
- FCC certified (EMI) - DL-20230808003C
Manufacture certifications :
- IATF 16949:2016 quality system
- ISO14001:2015 environmental system
- ISO13485 medical system certificate.
Warranty :
This product includes a 12 months warranty.
In case of
- misuse
- mishandling
- negligence
- vehicle accidents
- modifications
the warranty will be voided.
Our warranty only covers manufacturing defects.
Consult the warranty section for more informations.
