    TECHNOVE | 48A | CSA Certified | Hardwired

    $999.00 CAD
     per

    Tested and meets the highest safety standards

    Real customer service, we don't use bots or AI

    Shipping and duties are on us for all orders in Canada & USA



    Technical specifications – TechnoVE S48

    • Power supply : 208 to 240 V AC, 60 Hz
    • Current range : Adjustable from 12 to 48 amps continuous
    • Operating voltage : 208V to 240V
    • Output power : From 2.5 kW to 11.6 kW (i.e., 2,500 to 11,600 W depending on the configuration)
    • Circuit breaker required : 60 amps
    • Charger type : Level 2 universal charging station
    • Standards and certification : Compliant with applicable CSA and UL standards. Charging station certified by LabTest Certification Inc.
    • Protection : NEMA 3R rated enclosure(resistant up to NEMA 4X: rain, snow, dust, ice)
    • Case : Robust and durable 3.8 mm thick recycled aluminum
    • Dimensions : 230 mm (H) × 150 mm (W) × 75 mm (D)
    • Compatible wire gauge : AWG 14 to AWG 3

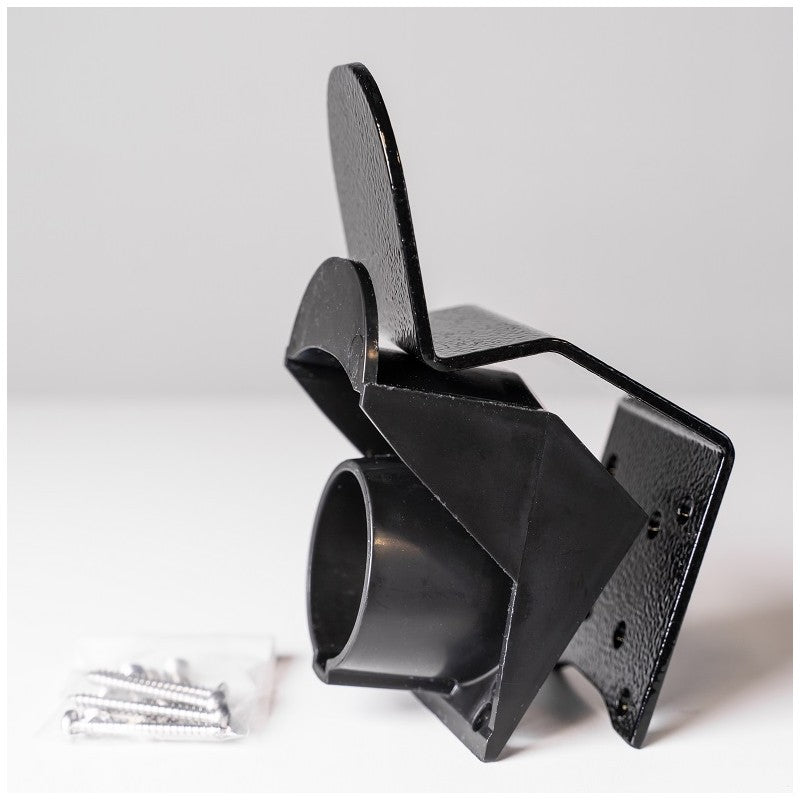

    • Included with the terminal : Wall bracket for the cable and receptacle for connector/gun
    • Installation required on a 60-amp circuit breaker

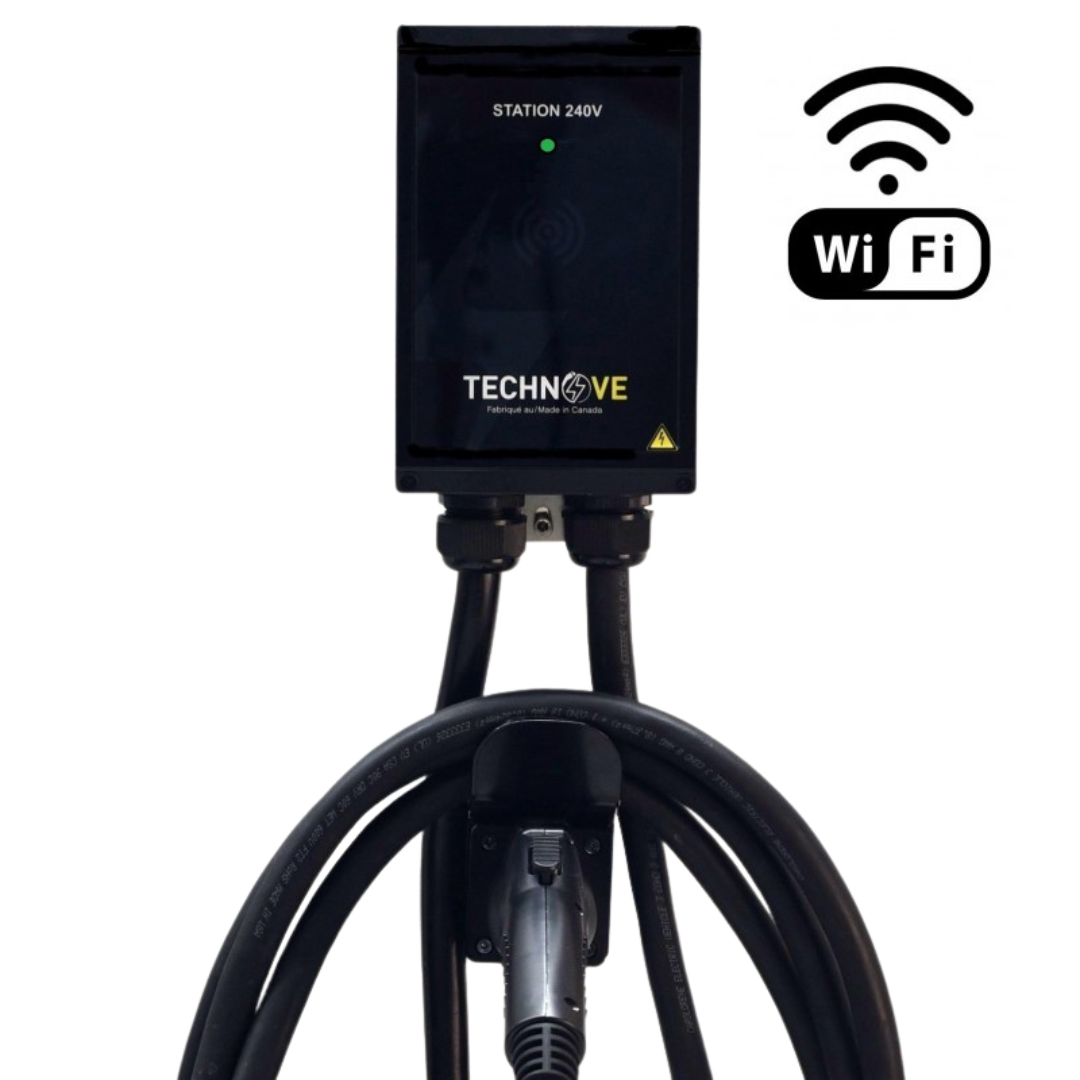

    48A Residential Charging Station – TechnoVE S48

    The TechnoVE S48 residential charging station is designed to provide a fast, reliable, and safe home charging experience. Featuring advanced functionalities and robust construction adapted to Quebec's climate, it perfectly meets the needs of electric vehicle (EV) owners seeking a sustainable and smart solution.

    Fast and reliable charging

    With an output of up to 48 amps (up to 11.6 kW), the TechnoVE S48 enables efficient charging of your electric vehicle, significantly reducing charging time. It's ideal for overnight charging or charging between trips, ensuring your EV is always ready to go.

    Smart features via OCPP

    Thanks to the integration of the OCPP (Open Charge Point Protocol), this charging station offers intelligent charging management. It is compatible with various software platforms and allows for future connectivity with home automation or energy management systems. The TechnoVE mobile app allows you to configure the station, monitor energy consumption, and schedule charging times to optimize your electricity costs.

    Dynamic load sharing

    A particularly useful feature of the TechnoVE S48 is its intelligent load-sharing system. This allows you to install up to four charging stations on a single circuit breaker, which is ideal for households with multiple electric vehicles or for multi-family dwellings. This dynamic sharing system distributes the available power evenly to prevent overloading.

    Compatible with all electric vehicles

    The charging station is equipped with a North American standard SAE J1772 connector and will also be available with the NACS connector (used by Tesla) in the near future. This broad compatibility ensures that your charging station will work with the majority of current and future electric vehicles.

    Simple and versatile installation

    The TechnoVE S48 is easy to install thanks to a fixed connection directly to the electrical panel. It must be connected to a 60-amp circuit breaker for optimal and safe operation. A clear installation guide is provided, and it can be installed both indoors and outdoors.

    Designed for the North American climate

    Made of aluminum with a 4X-type housing, the TechnoVE S48 is weather-resistant, withstanding rain, snow, ice, and dust. It operates reliably in extreme temperatures ranging from -40°C to +40°C, making it ideal for installation in Quebec, regardless of the season.

    Long flexible cable and integrated stand

    The 25-foot (7.62-meter) cable remains flexible even during the harshest winters. It's long enough to easily reach your vehicle's charging port, regardless of your parking space. A wall mount for the cable and connector is included for neat and secure storage.

    Maximum protection and security

    The charging station is equipped with an integrated CCID protection device, which protects against overvoltages, relay faults, earth leakage currents, and other electrical hazards. This ensures the safety not only of your electrical installation, but also of your vehicle and home.

    Guarantee and peace of mind

    The TechnoVE S48 is covered by a 5-year limited warranty on the charging station and connector, ensuring a reliable and long-lasting investment. Technical support is local and available in French, making it easy to get help should you need it. By choosing the TechnoVE S48, you are opting for a charging station designed and manufactured in Quebec, conceived for the realities of our climate and the needs of local residential users. It represents a high-performance, smart, safe, and scalable charging solution, perfectly suited to everyday life.

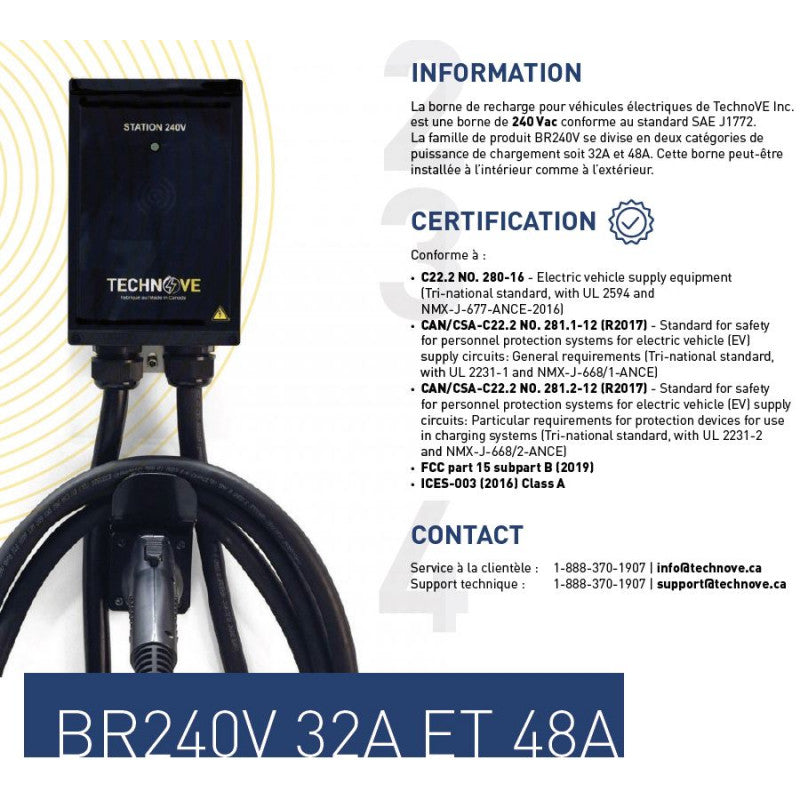

    Certifications:

    • C22.2 NO. 280-16 – Electric vehicle supply equipment (Tri-national standard, with UL 2594 and NMX-J-677-ANCE-2016)
    • CAN/CSA-C22.2 NO. 281.1-12 (R2017) – Standard for safety for personnel protection systems for electric vehicle (EV) supply circuits: General requirements (Tri-national standard, with UL 2231-1 and NMX-J-668/1-ANCE)
    • CAN/CSA-C22.2 NO. 281.2-12 (R2017) – Standard for safety for personnel protection systems for electric vehicle (EV) supply circuits: Particular requirements for protection devices for use in charging systems (Tri-national standard, with UL 2231-2 and NMX-J-668/2-ANCE)
    • FCC Part 15 Subpart B (2019)
    • ICES-003 (2016) Class A
